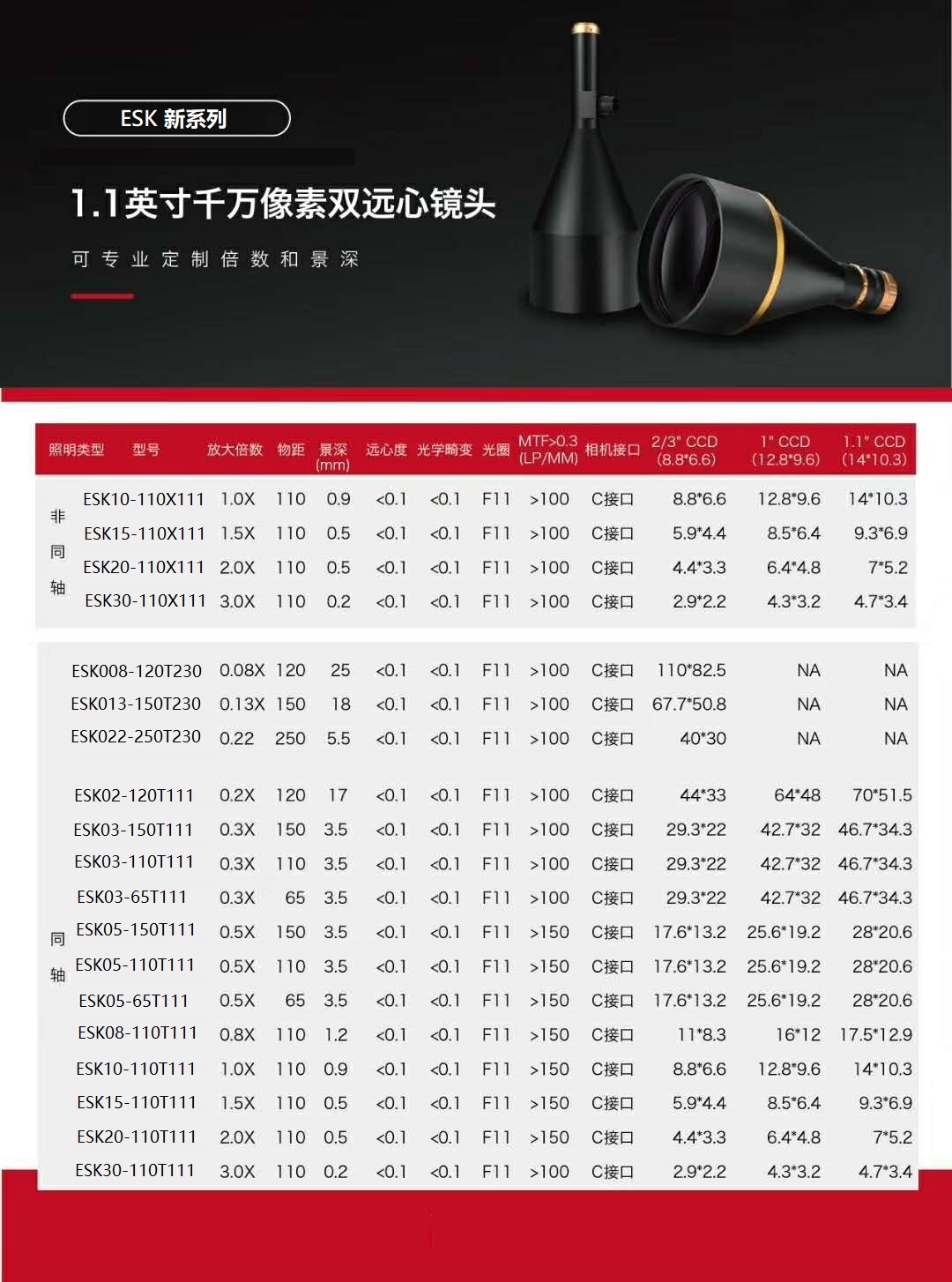

ESK系列 同軸雙側遠心鏡頭
低倍率大視野同軸與非同軸雙遠心設計
高清晰、低畸變、高遠心度，最高可支持2000萬1.1"靶面工業相機
特別適合AOI高精度的檢測與定位應用
標準C接口
可按客戶要求定制倍率/景深

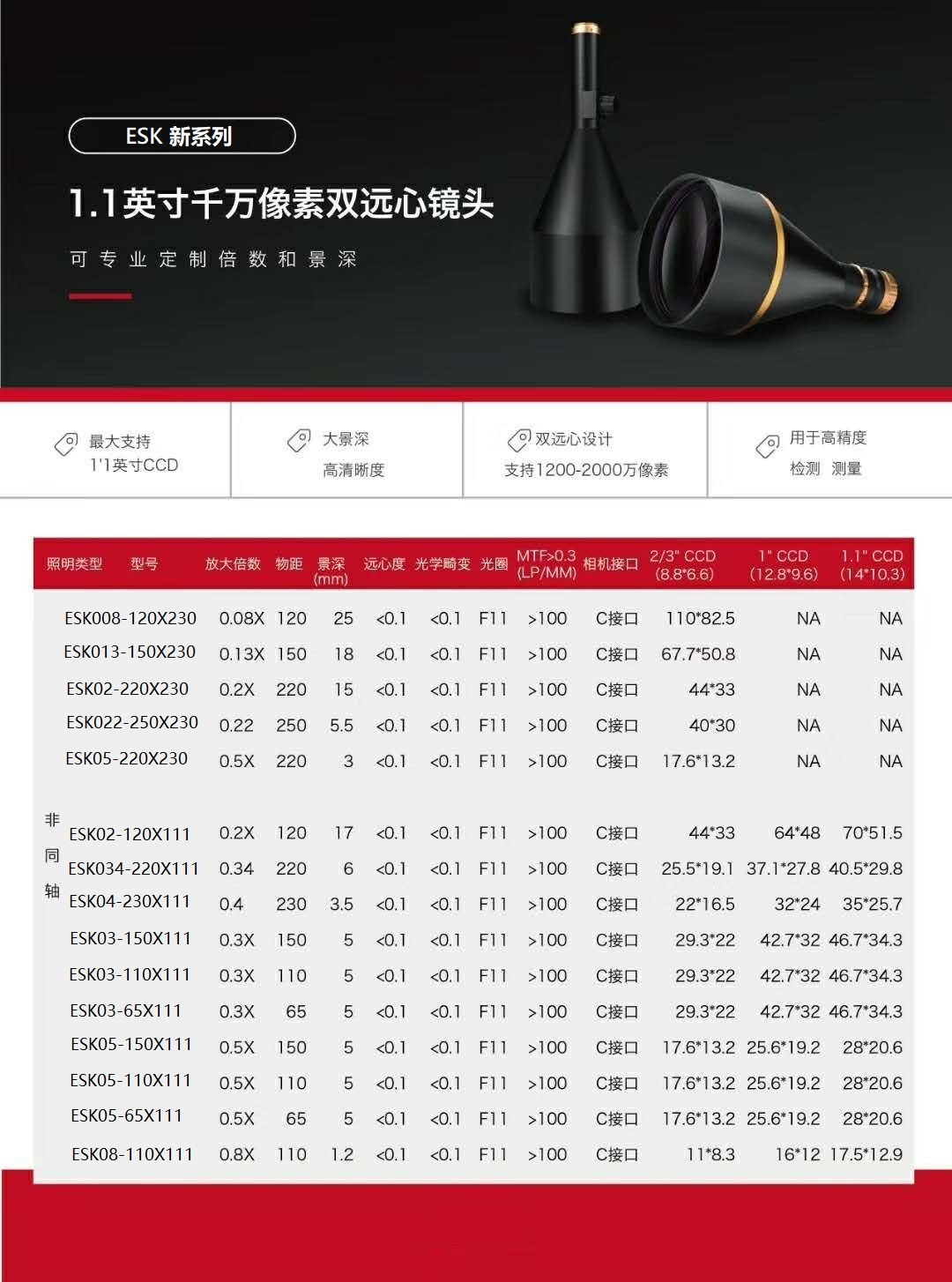

ESK系列大靶面高分辨率物方遠心鏡頭
低倍率大視野物方遠心設計
較長的工作距便于照明與機台部件佈置
高清晰、低畸變、高遠心度，最高可支持1"靶面工業相機
特別適合AOI高精度的檢測與定位應用
標準C接口

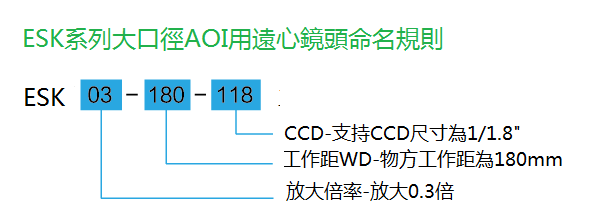

| 型號 | 光學參數 |
|||||||
| 放大 倍率 |
物方 工作距 |
物方 景深 |
像方 F/# |
MTF30 (lp/mm) |
支持最大 CCD尺寸 |
長度 （mm） |
內置 同軸光 |
|
| ESK20-110C-111 | 2X | 110±2 | ±0.4@F20 | 13.5 | ≧60 | 18(1/1") | 133.2 | No |
| ESK20-110-111 | 2x | 110±2 | ±0.4@F20 | 13.5 | ≧60 | 18(1/1") | 133.2 | No |
| ESK15-110C-111 | 1.5x | 110±2 | ±0.7@F20 | 10 | ≧78 | 18(1/1") | 128.8 | Yes |
| ESK15-110-111 | 1.5x | 110±2 | ±0.7@F20 | 10 | ≧78 | 18(1/1") | 128.8 | No |
| ESK10-110C-111 | 1x | 110±2 | ±1.2@F16 | 7 | ≧105 | 18(1/1") | 133.3 | Yes |
| ESK10-110-111 | 1x | 110±2 | ±1.2@F16 | 7 | ≧105 | 18(1/1") | 133.3 | No |
| ESK0275-220-111 | 0.275x | 220±2 | ±16@F16 | 8 | ≧105 | 18(1/1") | 242.9 | No |
| ESK0246-220-111 | 0.246x | 220±2 | ±20@F16 | 8 | ≧100 | 18(1/1") | 232.9 | No |
| ESK023-220-111 | 0.23x | 220±2 | ±24@F16 | 8 | ≧110 | 18(1/1") | 233.0 | No |
| ESK022-220-111 | 0.22x | 220±2 | ±26@F16 | 8 | ≧110 | 18(1/1") | 232.9 | No |
| ESK022-220-230 | 0.22x | 220±2 | ±13@F16 | 10 | ≧80 | 11(2/3") | 150.3 | No |
| ESK014-190-125 | 0.14x | 190±2 | ±32.5@F16 | 8 | ≧100 | 7.2(1/2.5") | 132.8 | No |
| ESK022-200-230 | 0.22x | 200±2 | ±13@F16 | 10 | ≧80 | 11(2/3") | 150.3 | No |
| ESK022-200-118 | 0.22x | 200±2 | ±13@F16 | 8 | ≧95 | 9(1/1.8") | 150.0 | No |
| ESK03-220C-230 | 0.3x | 220±2 | ±9.7@F22 | 13.6 | ≧63 | 11(2/3") | 167.7 | Yes |
| ESK03-220-230 | 0.3x | 220±2 | ±9.7@F22 | 13.6 | ≧63 | 11(2/3") | 167.7 | No |
| ESK03-180C-230 | 0.3x | 180±2 | ±7@F16 | 10 | ≧83 | 11(2/3") | 166.2 | Yes |
| ESK03-180-230 | 0.3x | 180±2 | ±7@F16 | 10 | ≧83 | 11(2/3") | 166.2 | No |
| ESK03-180-118 | 0.3x | 180±2 | ±7@F16 | 8 | ≧100 | 9(1/1.8") | 166.2 | No |
| ESK0345-220-110 | 0.345x | 220±2 | ±5.3@F16 | 8 | ≧115 | 16(1") | 214.9 | No |
| ESK0367-220-110 | 0.367x | 220±2 | ±4.7@F16 | 8 | ≧115 | 16(1") | 214.9 | No |
| ESK05-220-110 | 0.5x | 220±2 | ±2.5@F16 | 8 | ≧110 | 16(1") | 205.7 | No |
| ESK055-220-110 | 0.55x | 220±2 | ±2.1@F16 | 8 | ≧110 | 16(1") | 215.4 | No |
